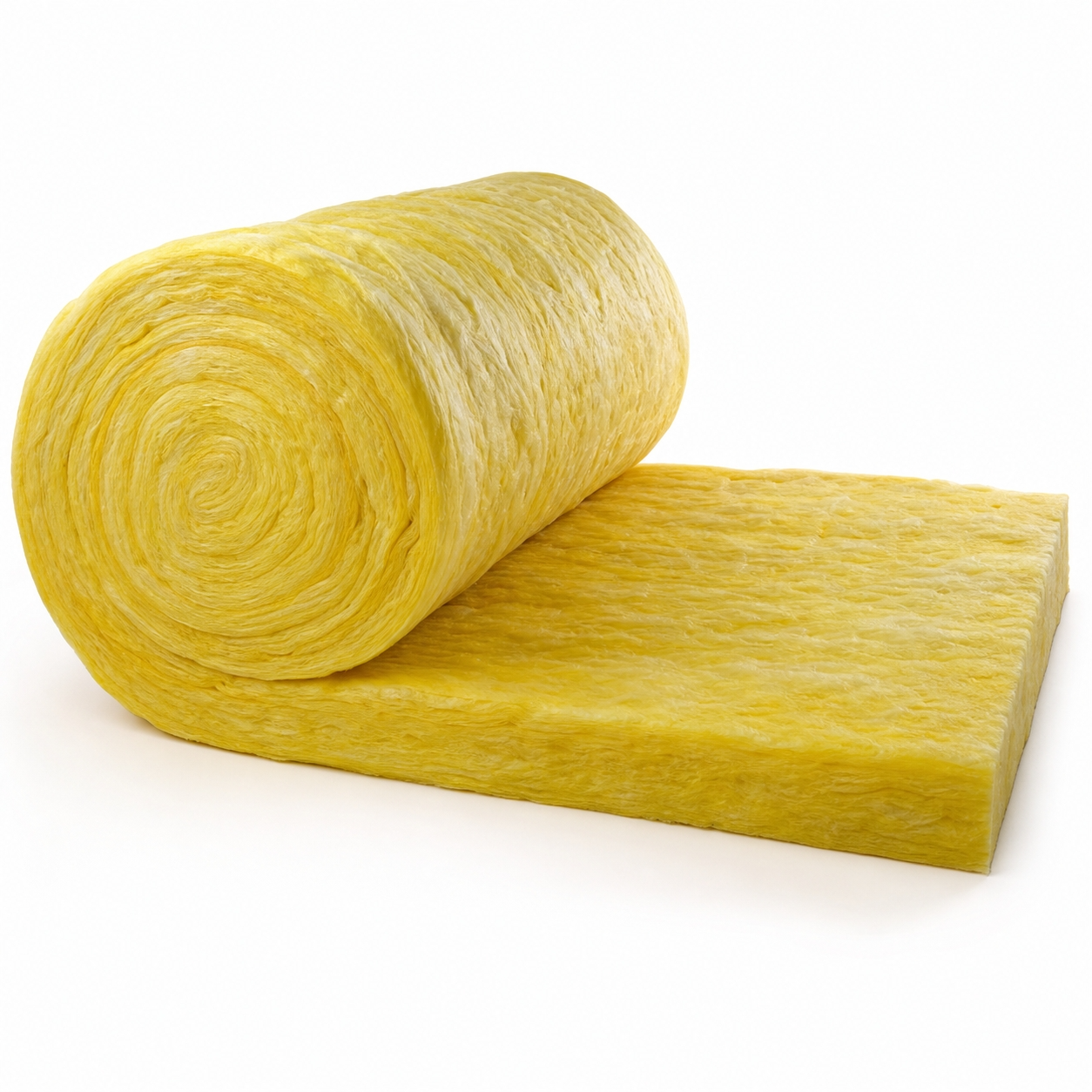

High Temperature Glass Wool
Yinliya high temperature glass wool is designed for hot air ducts, power plant flues, steam pipelines, and large-diameter pipes. It provides lightweight, dimensionally stable thermal insulation and noise reduction with heat-load shrinkage temperature up to 500 deg C.
High Temperature Glass Wool
Yinliya high temperature glass wool roll uses optimized binder content to support stable performance under elevated temperatures. It combines the lightweight handling of glass wool with reliable thermal insulation and noise reduction for industrial heat systems.
Key Features
- Designed for heat-intensive duct, flue, and pipeline insulation
- Lightweight roll format for efficient wrapping and installation
- Dimensionally stable under heat load
- Reliable thermal insulation and noise reduction
- Heat-load shrinkage temperature up to 500°C
Applications
- Hot air ducts and industrial ventilation systems
- Power plant flues and exhaust systems
- Steam pipelines and process piping
- Large-diameter pipes above 300 mm
Technical Specifications
| Density | 24-64 kg/m³ |
|---|---|
| Thickness | 25-100 mm |
| Width | 600 / 1200 mm |
| Length | 5-20 m |
| Working Temperature | Up to 500°C |
| Thermal Conductivity | <=0.043 W/(m·K) |
| Fire Rating | Class A |
| Application | Hot ducts, flues, steam pipelines |
| Standards | EN 13162, GB |
Customization & Supply
Density, thickness, width, roll length, and facing can be customized for thermal system design, pipe diameter, and installation environment.
Packaging & Loading
Yinliya offers professional export packaging to maximize container loading and protect product quality in transit.
- Glass wool rolls: double-layer vacuum-compressed bags, inner plastic plus outer woven bag, to increase container loading and reduce freight cost.
- Rock wool rolls: heat-shrink film, standard yellow bag, or transparent plastic bag.
- Boards: shrink-wrapped and palletized for stable stacking and easy handling.
- OEM packaging and custom brand labels available on request.
