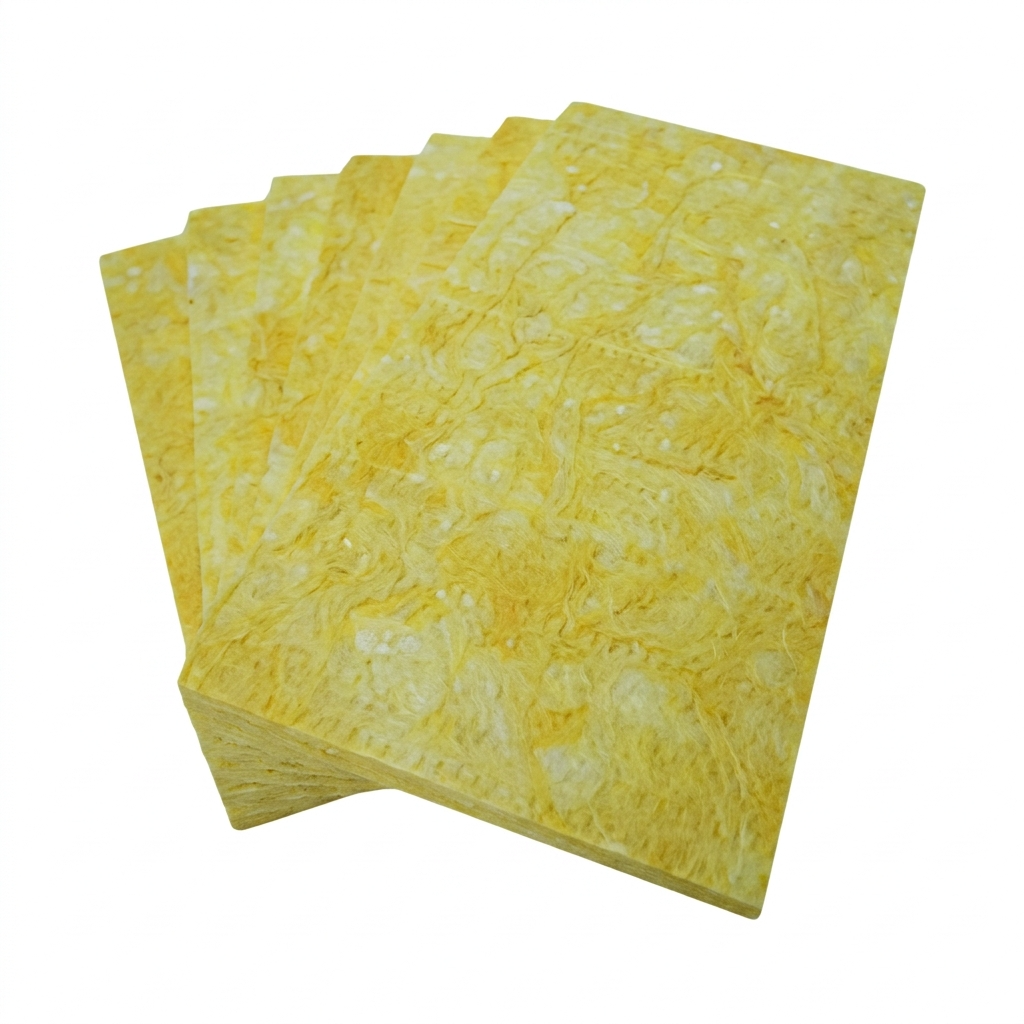

Glass Wool Air Conditioning Board
Yinliya glass wool air conditioning board is engineered for HVAC systems, providing efficient thermal insulation, sound absorption, reduced structural load, rapid fabrication, and shorter installation cycles for commercial and industrial duct projects.
Glass Wool Air Conditioning Board
Yinliya glass wool air conditioning board is engineered for HVAC ductwork and air conditioning systems. It combines efficient thermal insulation, acoustic control, lightweight construction, and easy fabrication to support energy-saving commercial and industrial HVAC projects.
Key Features
- Efficient thermal insulation reduces HVAC energy loss
- Superior sound absorption helps lower duct and airflow noise
- Lightweight board reduces structural load
- Fast fabrication and installation shorten project cycles
- Aluminum foil facing options support clean duct surfaces
Applications
- HVAC ducts and central air conditioning systems
- Commercial buildings, offices, hotels, and malls
- Industrial ventilation and air handling systems
- Projects requiring thermal insulation and noise control in one board
Technical Specifications
| Density | 32-80 kg/m³ |
|---|---|
| Thickness | 25-50 mm |
| Length | 600-1200 mm |
| Width | 600 mm |
| Thermal Conductivity | <=0.041 W/(m·K) |
| Fire Rating | Class A |
| Facing | Aluminum foil, single or double side |
| Application | HVAC ducts |
| Standards | EN 13162, GB |
Customization & Supply
Board density, thickness, facing, and size can be supplied according to duct design, insulation thickness, and fabrication requirements.
Packaging & Loading
Yinliya offers professional export packaging to maximize container loading and protect product quality in transit.
- Glass wool rolls: double-layer vacuum-compressed bags, inner plastic plus outer woven bag, to increase container loading and reduce freight cost.
- Rock wool rolls: heat-shrink film, standard yellow bag, or transparent plastic bag.
- Boards: shrink-wrapped and palletized for stable stacking and easy handling.
- OEM packaging and custom brand labels available on request.
